IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings

Name: IP68 Watertight PG Cable Glands Stainless Steel Inox 304 316 316L with Viton Fluororubber Seals amp Orings
Brand: Sino Cable Gland Factory
Price: 1 USD

Wholesale IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings from china suppliers

Brand Name : Sino Cable Gland Factory

Model Number : PG series

Certification : CE, RoHS, REACH, IP68

Place of Origin : Zhejiang, China

MOQ : 100 pieces

Price : most competitive prices from direct factory

Payment Terms : T/T, L/C, Western union, Cash

Supply Ability : 500,000 pieces / month

Delivery Time : normally 8-12 days

Packaging Details : export packing (special packing is also available on request)

Product name : Viton Rubber Sealing Cable Glands

Model : PG7 - PG48

Material : Stainelss Steel 1.4301/1.4401/1.4404

Seal & O-ring : Viton rubber or FPM rubber

Clamping claw : UL-certified PA6 (Nylon 6), 94V-2

Surface treatment : Polishing

Protection : IP68

PG thread : According to DIN 40430

Advantages : Resistant to weather, corrosion, sunlight, ozone and temperature

Contact Now

Advantages & Applications:

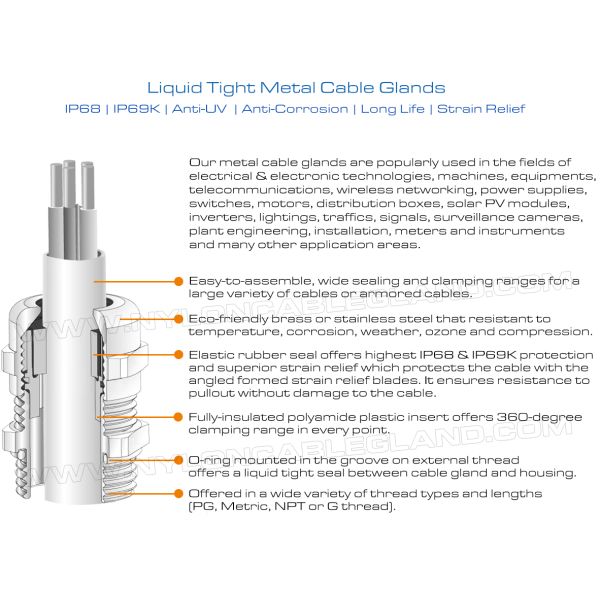

IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings made in non-magnetic stainless steel material grade AISI304, AISI316 or AISI 316L is available with Metric, PG, NPT and G connecting threads. It is designed to permit the entry of cables into electrical equipment or component which provides earthing, bonding, insulation, sealing, retention and strain relief, and provides mechanical supports for the cables.

IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings has the good capability of chemical resistance, corrosion resistance and heat resistance, and it has also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. It is resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent and is widely used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.

Product details:

No.	Item	Description
1	Place of origin:	Zhejiang, China
2	Manufacturer:	Yueqing Sino Cable Gland Factory
3	Product name:	IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings
4	Model:	PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48
5	Material:	Stainless Steel AISI304, AISI304L, AISI316 or AISI316L
6	Seal & O-ring:	Viton fluorous rubber
7	Plastic insert:	UL-Polyamide 66, 94V-2 (also available in 94V-0)
8	Surface treatment:	Polishing
9	Color:	Metallic silver
10	Features:	Provide excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.
11	Certifications:	CE, ROHS, REACH, IP68
12	Protection:	IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
13	Thread:	According to DIN40430
14	Temperatures:	Normal use: -20℃ to 260℃.
15	Quality grade:	High quality
16	OEM services:	Yes, available
17	Supply capacity:	500,000 pieces each month
18	Prices:	Most competitive prices from direct factory
19	Minimum quantity:	Yes, negotiable
20	Samples:	Free samples are available on request
21	Delivery time:	7-10 days after confirmation of orders
22	Payment terms:	T/T, Cash, L/C
23	Delivery terms:	EXW, FCA, FOB, CIF, CNF
24	Shipping methods:	By courier (EMS, TNT, DHL, UPS or FEDEX)
		By air (Shanghai or Ningbo)
		By sea (Shanghai or Ningbo)
25	Export packing:	100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
		100 pieces per box, 50 pieces per box (white box or OEM box)
		other special packing is also available on request

IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings

IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings Images
